Generate a Show All report in HP c-Class Blade Enclosures

less than 1 minute read

One nice feature of the HP Onboard Administrator used to manage the c-Class Blade Enclosures is the possibility to generate a report in plain text format that contains the configuration of the enclosure and the whole inventory, including device bays, interconnect modules, MAC, WWNs, etc.

This report can be very useful for troubleshooting purposes and it’s for sure that if you have a problem with an enclosure and open a case to HP Support the Show All report will be amongst the first things you’ll be asked for.

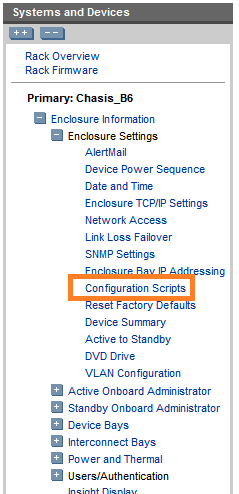

Login into the enclosure Onboard Administrator administration interface. From the main screen go to Enclosure Settings -> Configuration Scripts.

You will see the interface to upload your customized scripts, a text box to point to an URL where the script is stored and two links named SHOW CONFIG and SHOW ALL.

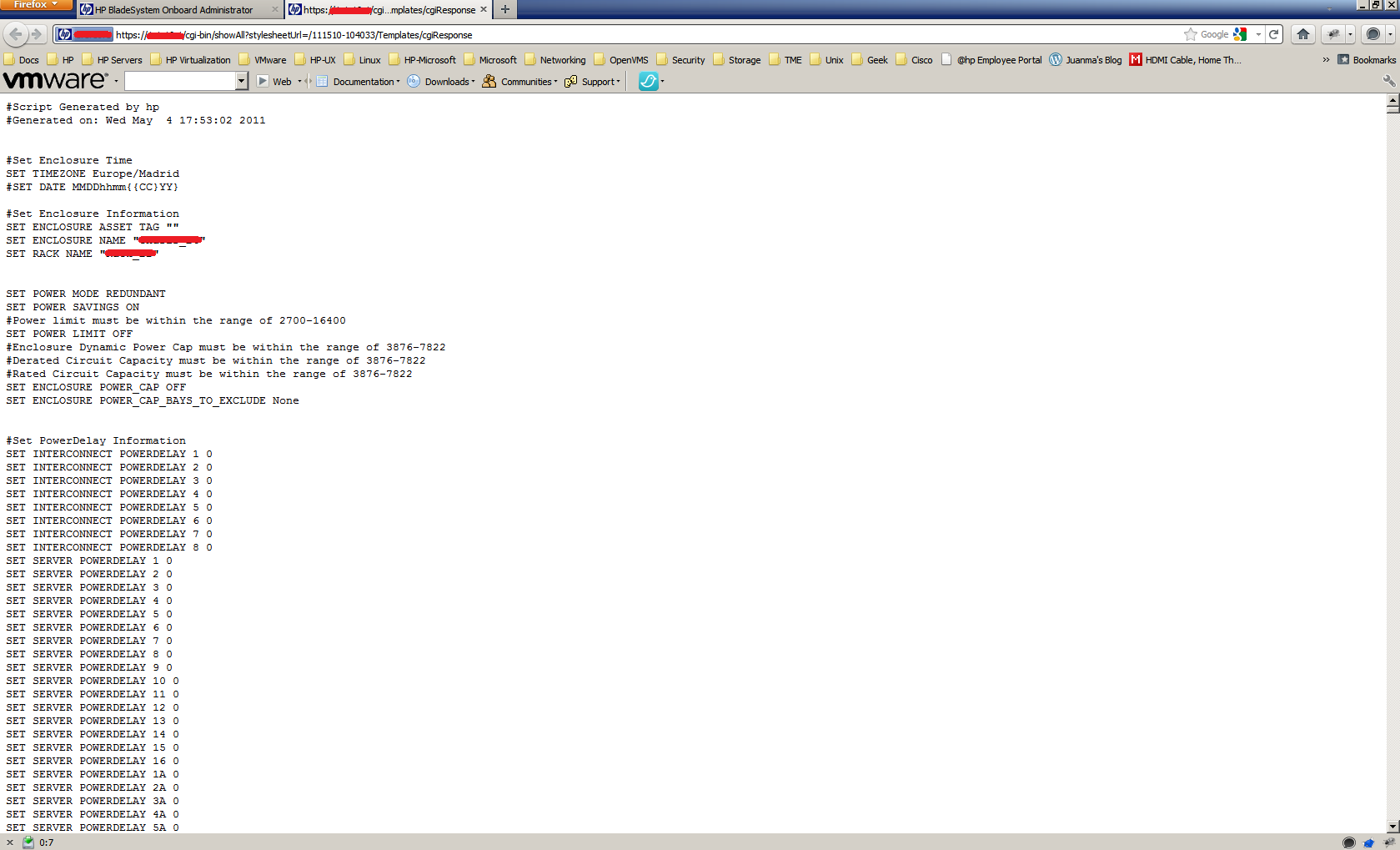

Click the SHOW ALL link, a new window or tab will open and after a few seconds a report will appear.

Save it to your system and you are done. Now you can open the file with any text editor to look into the enclosure data.
